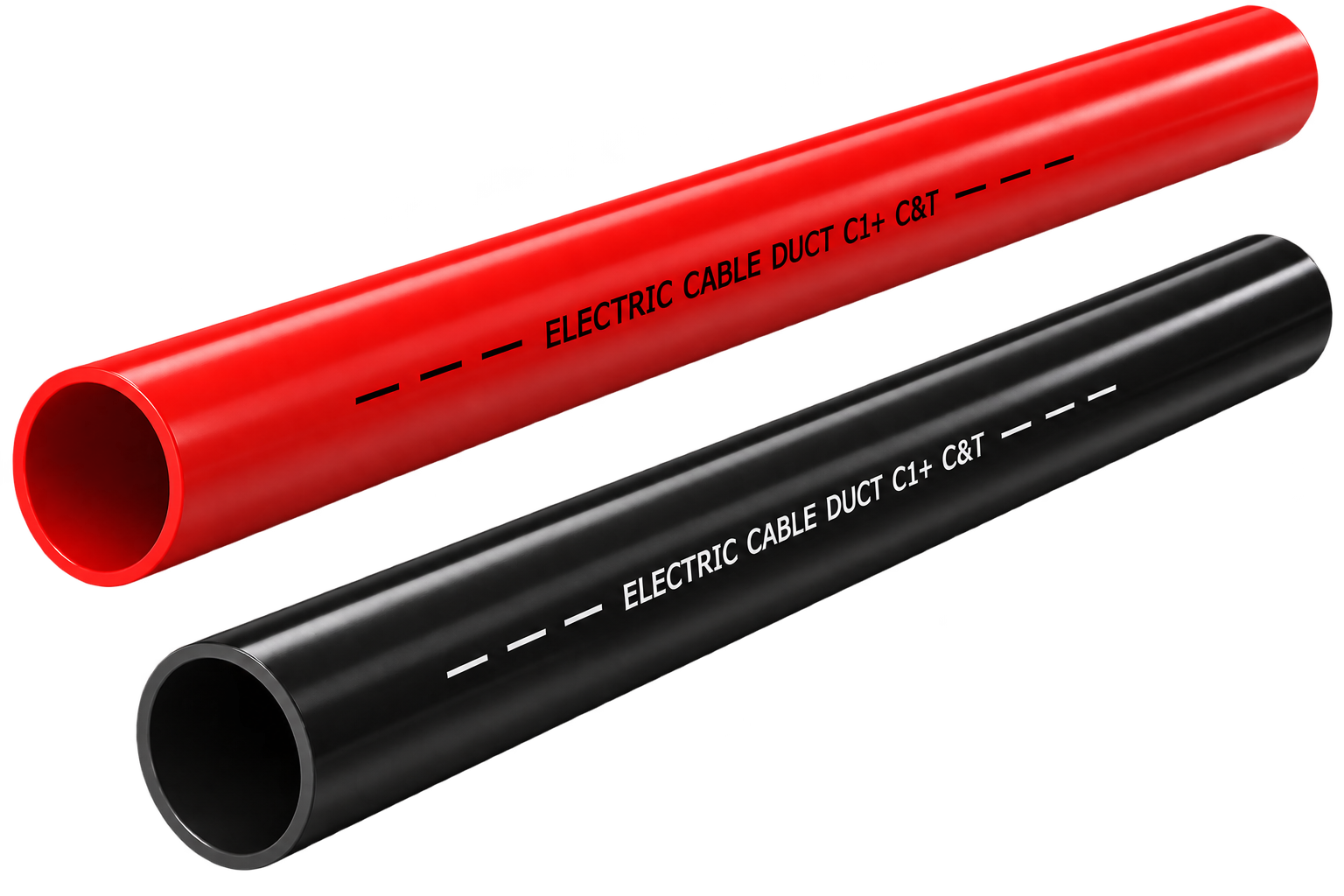

HDPE Duct – High & Medium Voltage
The HDPE Duct for High and Medium Voltage applications is a robust PE100 cable protection duct designed for underground electrical infrastructure. Manufactured in accordance with EN 12201 and ENA TS 12-24 Class 1+, it provides a durable route for protecting power cables and is suitable for HV and MV/LV applications, subject to end-user requirements. Class 1+ construction also makes the duct suitable for Horizontal Directional Drilling (HDD) applications.
Application
Product Benefits
Class 1+ Performance: Meets ENA TS 12-24 Class 1+ requirements for demanding electricity cable installations.
Suitable for HDD: Designed for use in Horizontal Directional Drilling applications.
High-Strength PE100: Manufactured from prime-grade PE100 material for strength and long-term durability.
Wide Size Range: Available from 63mm to 315mm OD with multiple SDR options.
Flexible Jointing: Supplied square-ended for butt fusion welding and can also be mechanically jointed following appropriate end preparation.
Technical Specifications
Material: Prime-grade PE100 high-density polyethylene
Standards: EN 12201; ENA TS 12-24 Class 1+
Applications: HV and MV/LV electricity cable protection
Coiled Supply: Available up to 180mm OD
Outer Diameters: 63mm – 315mm
